Láminas de hidrogel de TPU autorregenantes

Característica:

  • 0,18 mm Defensa contra impactos - Absorbe las gotas y los golpes que las láminas más finas pasan directamente al cristal.

  • Superficie de autocuración - Los arañazos finos y las marcas de uñas se desvanecen por sí solos, por lo que la pantalla se mantiene fresca.

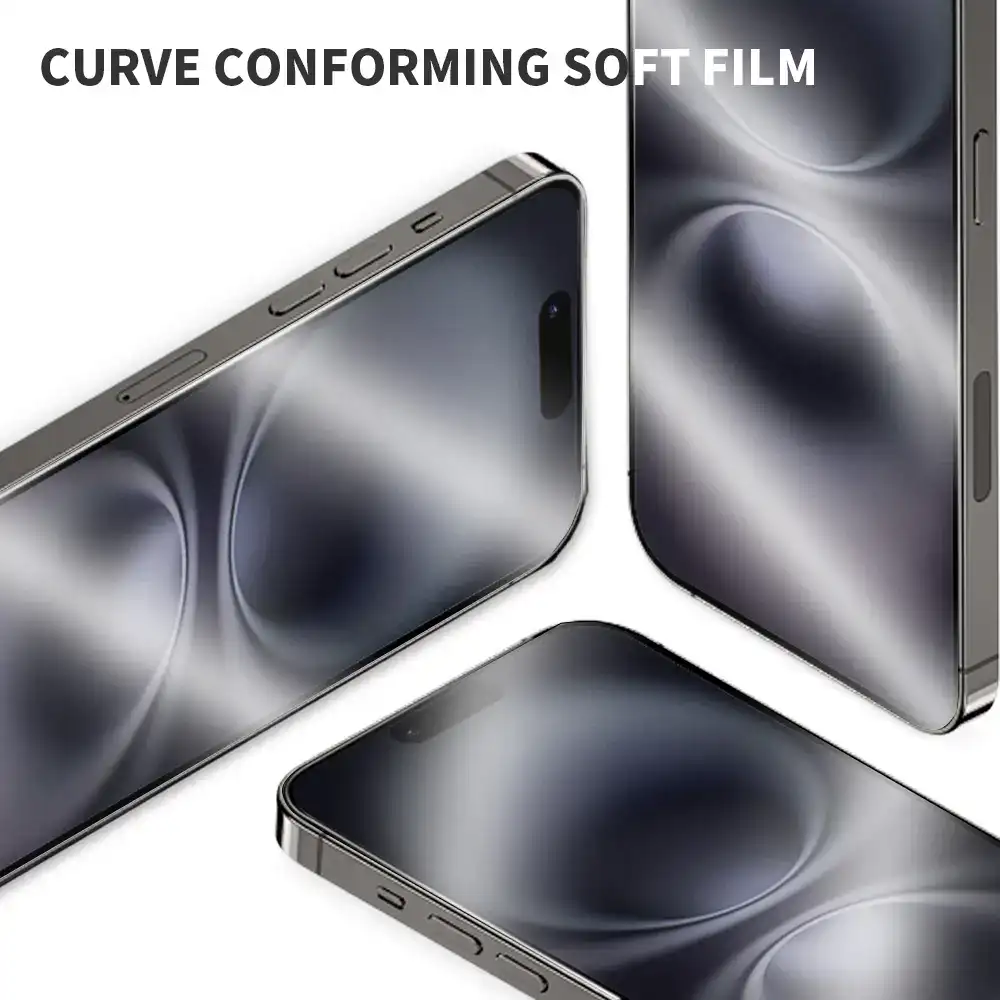

  • Bloqueo de pantalla curva - Se sujeta firmemente en cristales antihuellas y pantallas con bordes sin levantarse.

  • Alta definición cristalina - La alta transmitancia y la nitidez ultrabaja mantienen los colores vivos y el texto nítido.

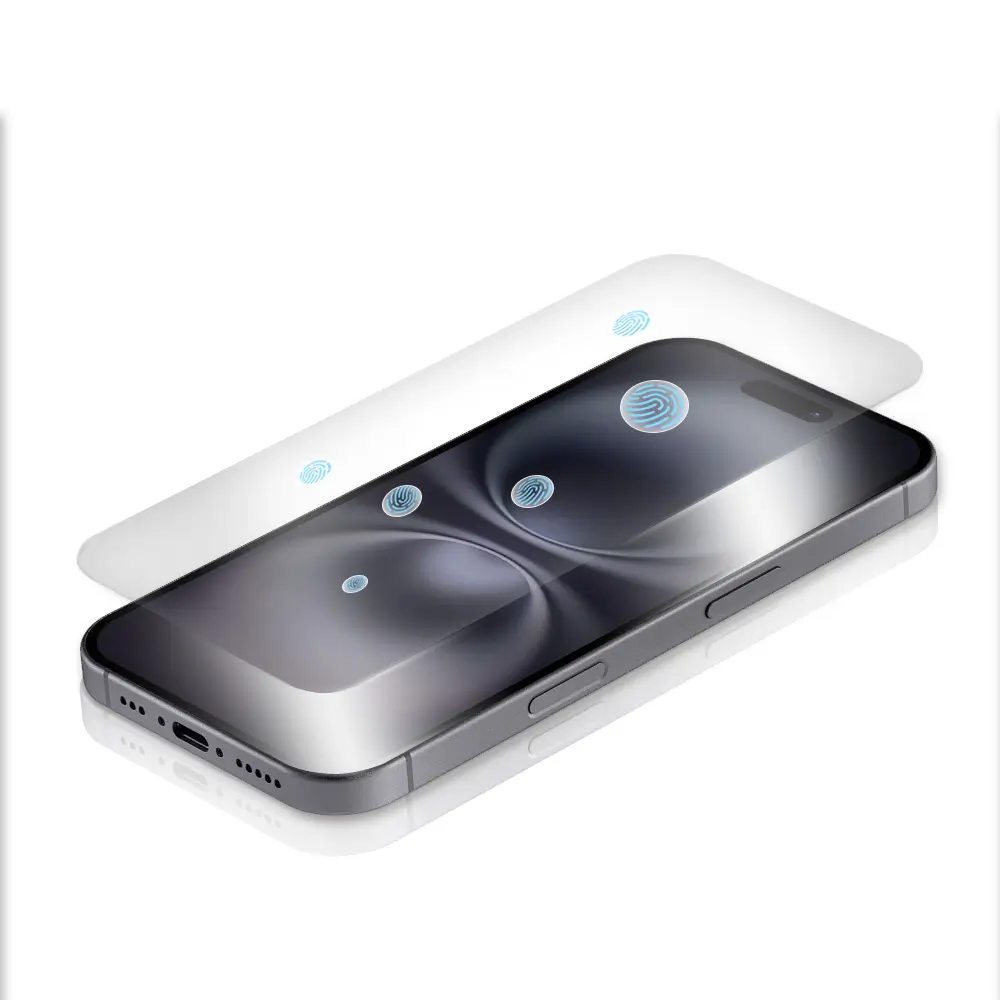

  • Anti-huella digital - El revestimiento oleofóbico resiste las manchas, manteniendo la pantalla limpia todo el día.

- +

¿Porque nosotros?

  • Alta calidad
  • Respuesta rápida
  • Precio razonable

Acerca de este artículo

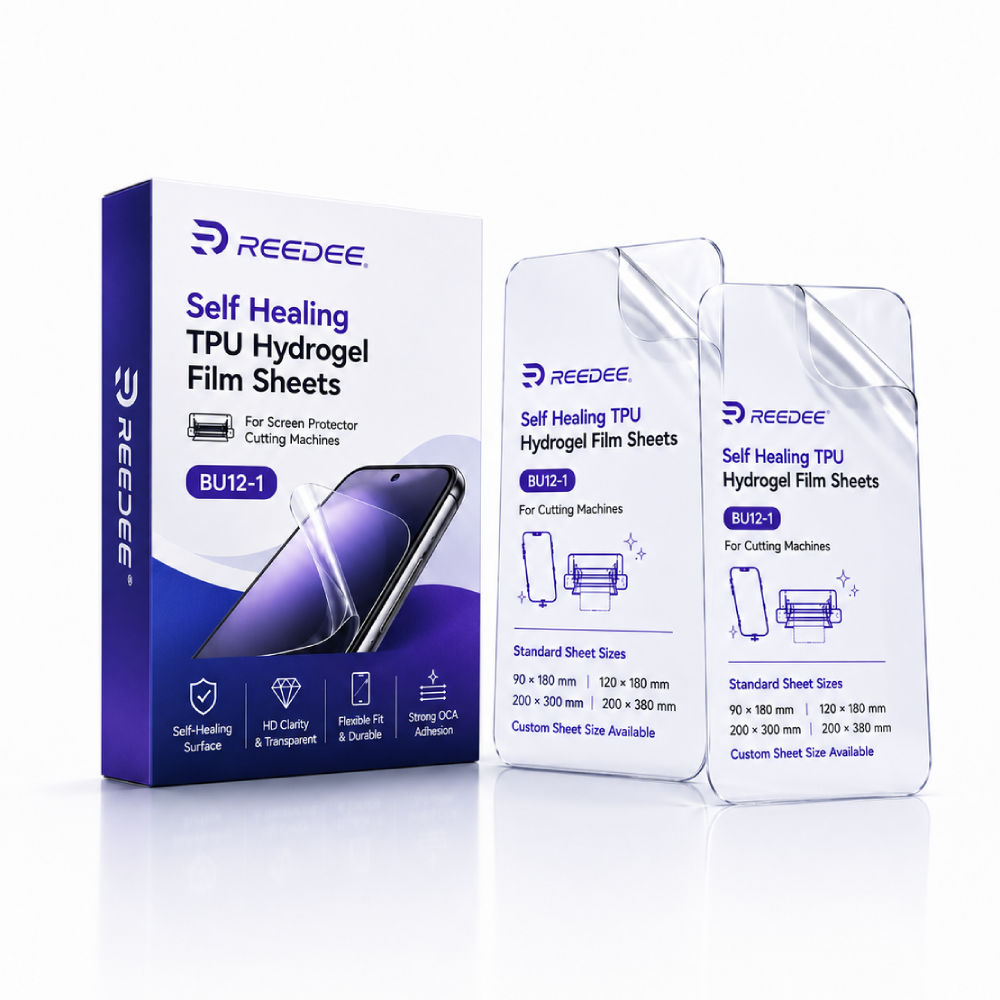

  • Product name: Self Healing TPU Hydrogel Film Sheet

  • Nombre de la marca: Reedee

  • Model: BU12-1

  • Compatible con: Todos los smartphones, incluidas las pantallas curvas y con bordes

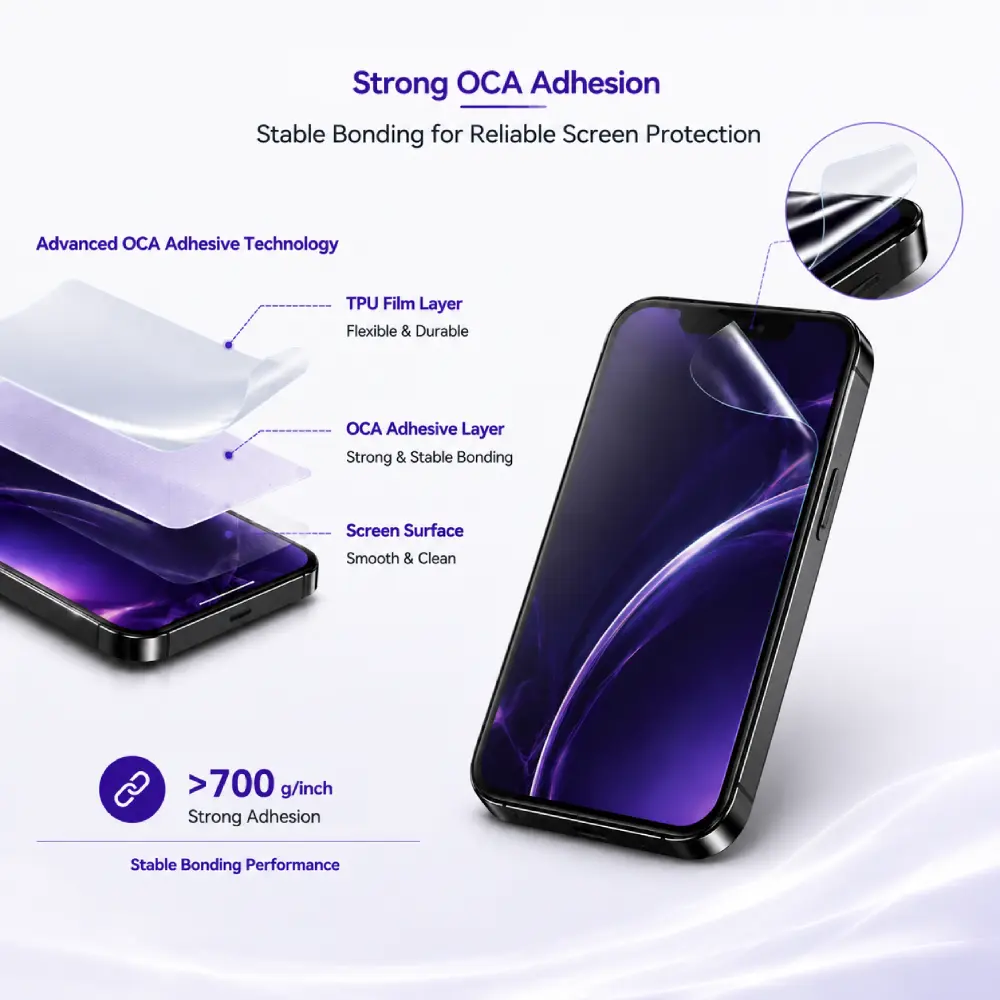

  • Material: Sustrato de TPU óptico con revestimiento autorregenerativo y adhesivo OCA

  • Use layer thickness: 180–195μm

  • Function: Self-healing, impact protection, anti-fingerprint, curved-screen secure fit, clean removal

  • Installation – Align and press onto a clean screen. No special tools needed.

Recomendación de productos relacionados

BU01-2 HD Clear TPU Hydrogel Film Sheet. Both feature optical TPU substrate with self-healing coating and ≥91% transmittance. BU01-2 heals faster (within 10 seconds) with a thinner build (100μm base), while BU12-1 offers a thicker 150μm base for stronger impact protection. Choose BU01-2 for instant healing speed; choose BU12-1 when drop defense matters more.

Parámetro Especificación
Grosor de la capa protectora 60 ± 5 μm
Self-repairing layer thickness 13 – 15 μm
Grosor de la capa de TPU 150 ± 5 μm
OCA layer thickness 23 – 25 μm
Matte/glossy release film thickness 75 ± 3 μm
Color Transparente
Adhesión ≥700 g/pulgada
Fuerza de pelado <8 g/inch
Fuerza de pelado de la capa protectora <5 g/inch
Ángulo de contacto con el agua ≥100°
Transmitancia de luz ≥91%
Bruma <2%
  • Plazo de entrega de la muestra: 1-3 días laborables

  • Plazo de producción: 15-25 días laborables

  • Métodos de envío: Transporte aéreo, marítimo y terrestre

  • Gastos de envío: Confirmado con el representante de ventas

    • Thicker TPU, real drop defense – 150μm base absorbs shocks that thinner films pass to the glass.

    • Curved-screen grip that holds – no lifting on anti-fingerprint glass or edge displays.

    • Self-healing you can demo – request a scratch-recovery video before you stock.

    • 10+ years coating thick films – ISO-certified cleanroom, consistent batch after batch.

    • Muestras A4 gratuitas en 1-3 días – test thickness and healing speed on your own machine.

    • Low MOQ, 100 meters – trial the heavy-duty category without overstocking.

    • Dedicated 1-to-1 support – one rep for samples, OEM, and logistics.

How thick is BU12-1 and why does that matter?

BU12-1 has a 150 m TPU base with total use layer of 180–195μm — noticeably thicker than standard 100μm hydrogel films. This extra thickness absorbs more impact energy, meaning fewer cracked screens and happier end users.

The 13–15μm self-healing coating repairs light scratches and nail marks within minutes at room temperature. Deeper marks may take longer or leave a faint trace — it’s built for daily wear, not heavy damage.
[/su_spoiler]

Will it stay on curved screens without lifting?

Yes. The adhesive is specifically formulated for curved edges and anti-fingerprint glass. It bonds at ≥700g/inch and passes 10-cycle adhesion testing with no debonding — edge lift complaints become rare.

Does the thicker film affect touch sensitivity?

No. TPU transmits touch accurately regardless of thickness. Screen responsiveness stays smooth, and the ≥100° water contact angle keeps fingerprints at bay.

Can I order custom sheet sizes for my cutting machine?

Yes. Standard 180×120mm sheets are available, and we produce custom dimensions to match your tray. MOQ applies — tell us your target size for a quote.

¿Ofrecen muestras gratuitas antes de hacer un pedido al por mayor?

Yes. Free A4 samples ship in 1–3 business days. Customers cover the express shipping fee. Test thickness, healing speed, and curved-screen fit on your own equipment first.

¿Qué métodos de pago aceptan?

T/T bank transfer, PayPal, Western Union, and L/C for large orders. Standard terms: deposit before production, balance before shipment. OEM payment terms can be discussed.

How do you handle quality issues or returns?

We offer a 30-day return and exchange policy for verified quality defects. Provide clear photos or video evidence with your order number. Once confirmed, we arrange refund, replacement, or credit — your choice.
